Specifications
| Attribute | Details |
|---|---|
| Product Name | Armouring Machine Catterpillar |
| Cable Diameter | 10–150 mm |
| Armour Wire | 0.8–8 mm |
| Bobbins | 24–96 |
| Max Speed | 80 m/min |
| Lay Length | Adjustable |
| Drive | AC Vector |
| PLC | Siemens/Allen Bradley |
| Pull Force | 500–30,000 N |
| Belt Length | 1500–3500 mm |
| Belt Width | 50–250 mm |
| Speed | 1–300 m/min |
| Motor | 3–30 kW |
| Pressure | Pneumatic |
Product Description

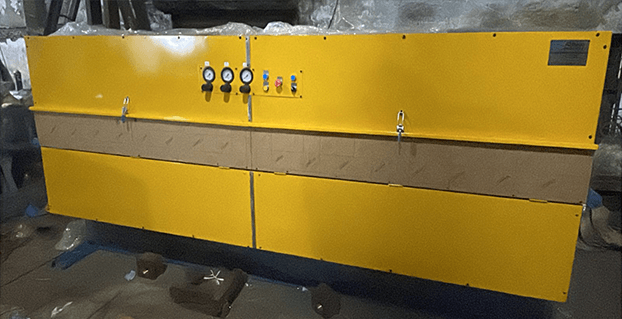

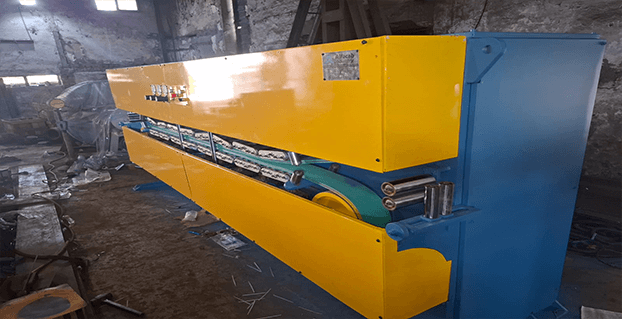

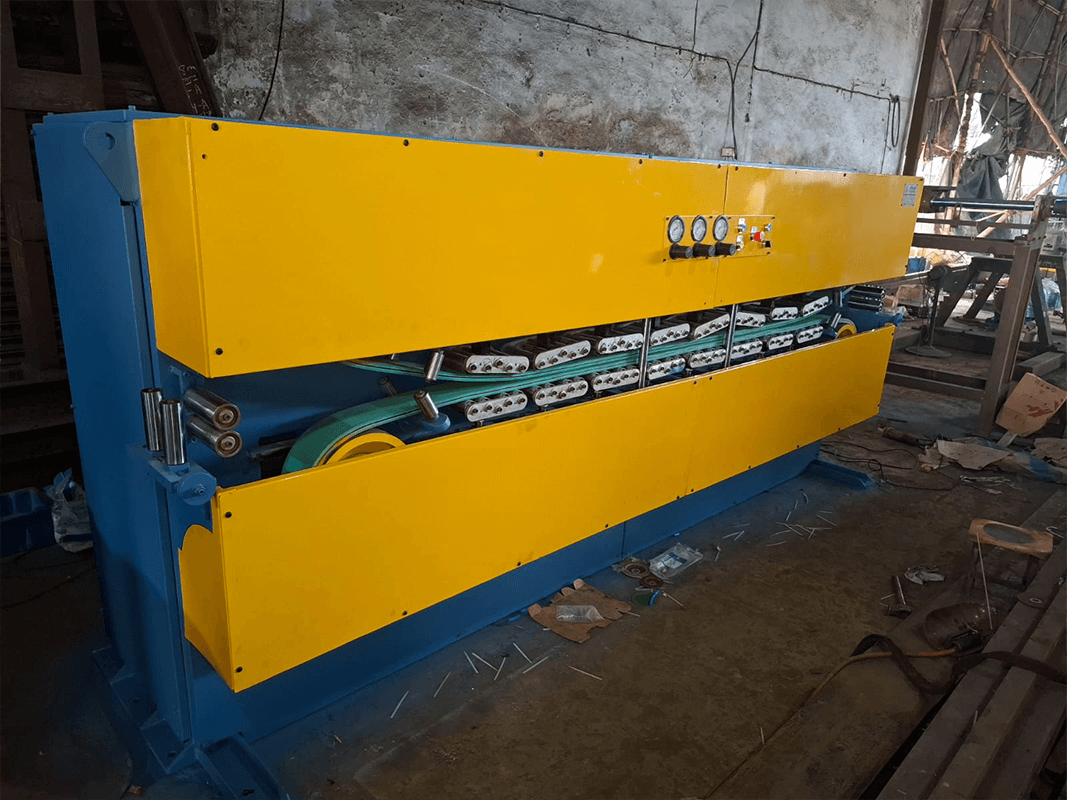

The Armouring Machine Caterpillar from Alfa Cab Industry is a heavy-duty caterpillar traction unit engineered to provide smooth, slip-free cable pulling during cable armouring machine operations. Designed for modern cable manufacturing machines, it maintains uniform cable movement and precise tension control, ensuring consistent armouring quality throughout production. Equipped with wear-resistant traction belts, automatic pressure control, and variable speed synchronization, this armouring line puller supports copper, aluminium, GI, and steel armoured cables. Its rugged construction, reliable traction system, and seamless integration with armouring machines make it the ideal solution for high-speed, continuous wire and cable manufacturing.
Key Features
- High-performance caterpillar traction unit for slip-free cable pulling.
- Precision tension and pressure control for uniform cable movement.
- Variable speed synchronization with armouring production lines.
- Wear-resistant traction belts for long-lasting industrial performance.
- Heavy-duty, low-maintenance construction for continuous operation.
Applications
- Power cable armouring lines.
- Control and instrumentation cable manufacturing.
- Telecom and specialty cable production.
- High-speed cable armouring operations.
- Wire and cable manufacturing plants.
