Specifications
| Attribute | Details |
|---|---|
| Product Name | High Speed Skip Strander |
| Application | Flexible Copper Conductors, Building Wires |
| Bobbins | 6–36 |
| Bobbin Size | 400–630 mm |
| Wire Diameter | 0.15–2.5 mm |
| Finished Conductor Size | Up to 35 mm² |
| Maximum Cage Speed | Up to 1500 RPM |
| Line Speed | Up to 250 m/min |
| Lay Length | PLC Adjustable |
| Drive | Servo / AC Vector |
| Tension Control | Automatic Electronic |
| Control System | PLC + Touchscreen HMI |
| Power Supply | 415V, 50Hz |
Product Description

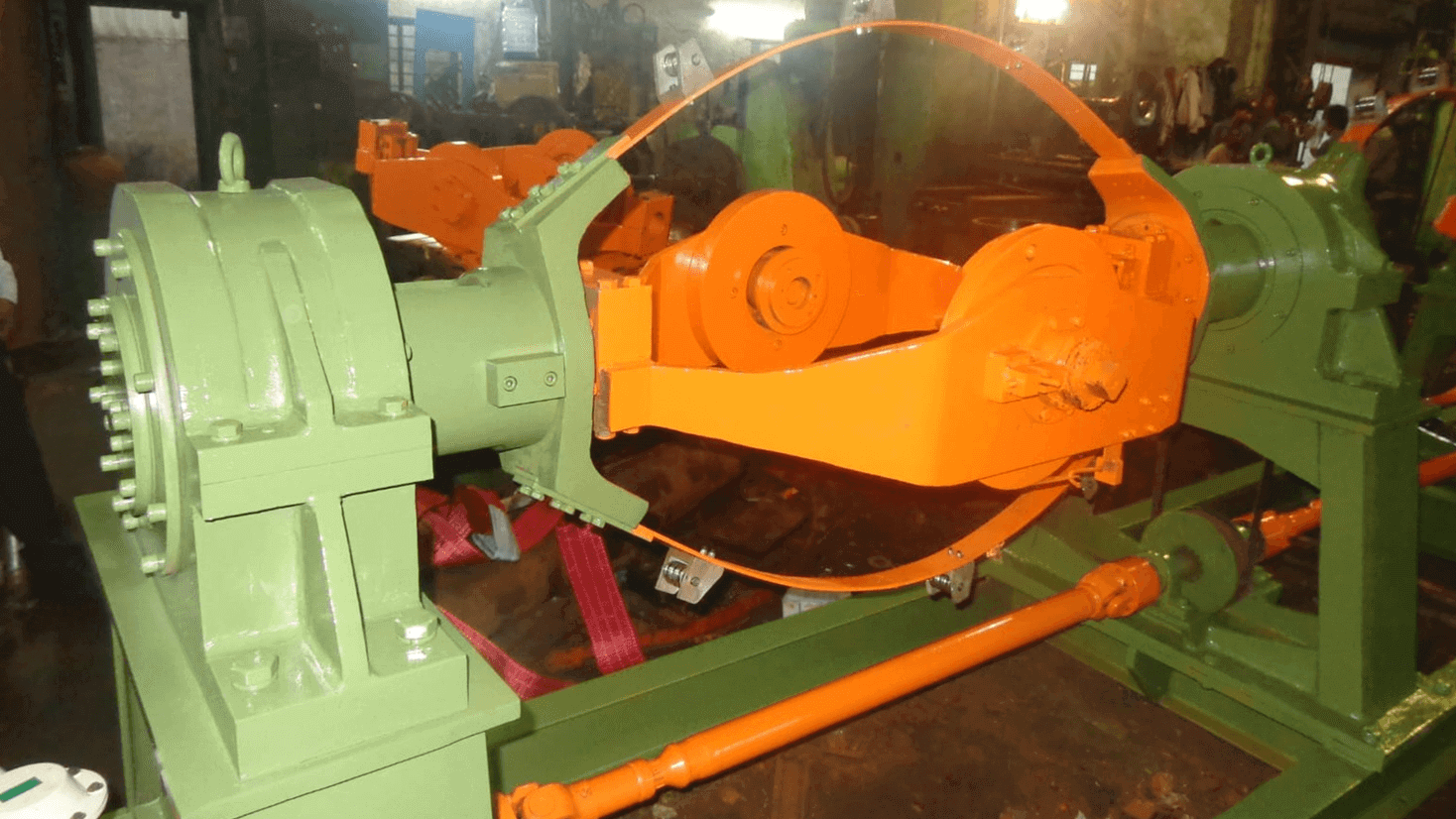

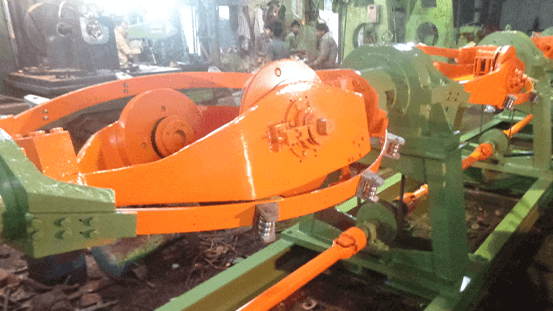

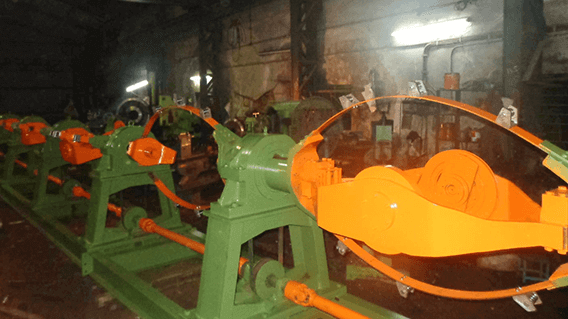

The High Speed Skip Strander from Alfa Cab Industry is a precision-engineered skip strander machine designed for fast and efficient cable stranding of copper, aluminium, and alloy conductors. Built for modern cable manufacturing machines, it delivers high-speed operation with accurate lay length, uniform wire tension, and superior strand quality. This advanced wire stranding machine minimizes vibration, reduces wire stress, and ensures stable production even at high speeds. Its compact, energy-efficient design, robust construction, and customizable configurations make it an ideal solution for manufacturers seeking higher productivity, reduced downtime, and consistent performance in demanding wire and cable production environments.
Key Features
-
High-speed skip-lay stranding for copper, aluminium, and alloy conductors.
-
Advanced VFD-controlled tension system for uniform strand quality.
-
Heavy-duty rotating drum design for smooth, vibration-free operation.
-
Compact, energy-efficient construction with low maintenance requirements.
-
Customizable machine configurations to suit diverse cable manufacturing needs.
Applications
-
Manufacturing power cable conductors.
-
Producing overhead transmission conductors.
-
Stranding communication and telecom cable conductors.
-
Manufacturing control and instrumentation cables.
-
Wire and cable production plants require high-speed stranding.
