Specifications
| Attribute | Details |
|---|---|
| Product Name | Armouring Machine |
| Application | Steel Wire Armouring & Steel Tape Armouring |
| Bobbins | 24–96 |
| Bobbin Size | 400–630 mm |
| Armour Wire Diameter | 0.8–8.0 mm |
| Steel Tape Width | 20–80 mm |
| Cable Diameter | 10–180 mm |
| Maximum Line Speed | Up to 80 m/min |
| Lay Length | Adjustable |
| Wire Tension Control | Automatic |
| Drive | AC Vector Motors |
| PLC | Siemens / Mitsubishi / Allen Bradley |
| HMI | 10–15 inch Touchscreen |
| Power Supply | 415V, 50Hz |
Product Description

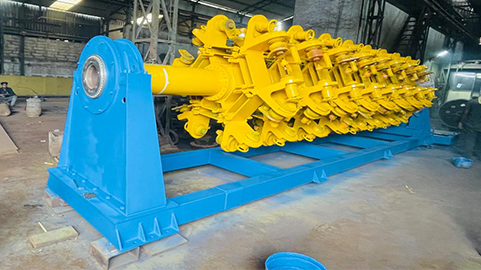

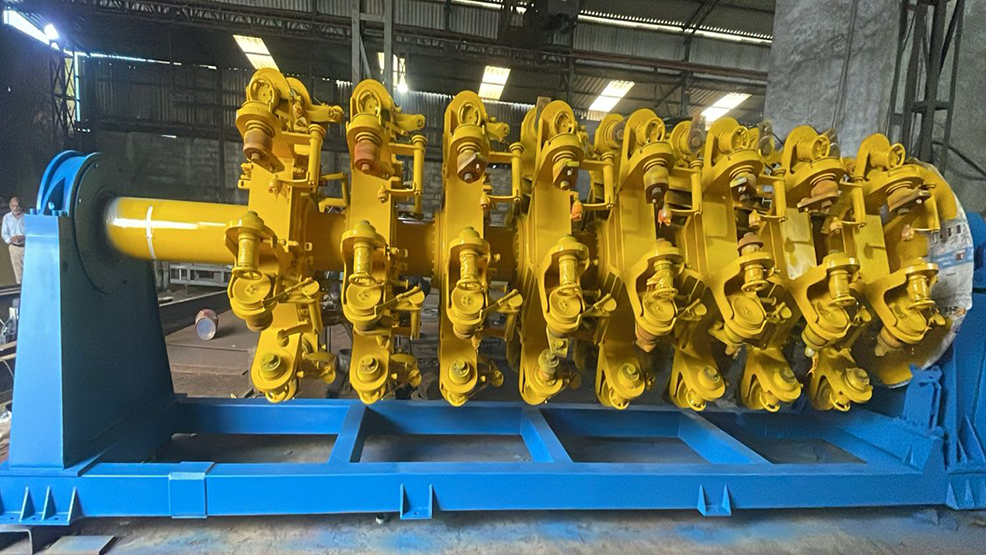

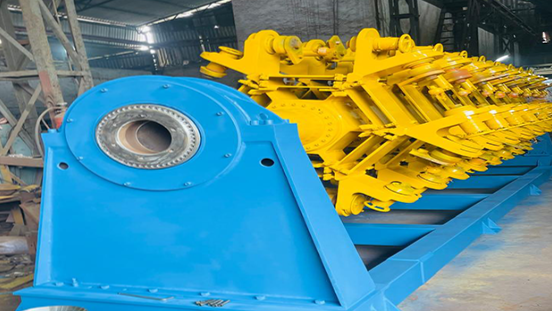

The Armouring Machine from Alfa Cab Industry is a high-performance cable armouring machine engineered to provide superior mechanical protection for power, control, instrumentation, and telecom cables. Designed for modern cable manufacturing machines, it applies steel, aluminium, copper, or galvanized wire armouring with exceptional precision and uniformity. Advanced tension control, concentric wire placement, and optional back-twist systems ensure consistent armouring quality and enhanced cable durability.
Its robust construction, modular design, and reliable performance make this armouring machine an ideal solution for manufacturers seeking efficient, high-speed production and long-lasting cable protection in demanding industrial applications.
Key Features
-
High-performance armouring machine for steel, aluminium, copper, and galvanized wire armouring.
-
Precision armouring heads ensure uniform concentric wire placement.
-
Advanced tension and lay-length control for consistent cable quality.
-
Optional back-twist and strip armouring systems for specialized applications.
-
Heavy-duty modular construction for continuous, low-maintenance operation.
Applications
-
Manufacturing armoured power cables.
-
Producing control and instrumentation cables.
-
Manufacturing underground and industrial cables.
-
Armouring telecom and communication cables.
-
Heavy-duty wire and cable manufacturing plants.
